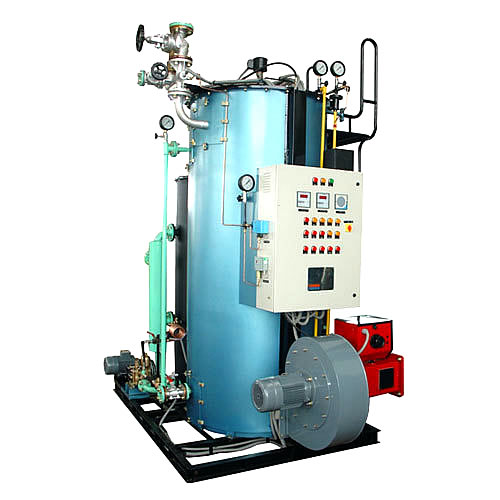

We supply both Imported & Indian Hot Water Generators (HWGs) of different models & capacities as per customers’ requirement. We are Authorized Dealers of CETIK ISI, Turkey for a range of HWGs.
Standard Operating Capacity Range : 10,000 – 10,00,000 KCAL/HR
High Efficiency : They work with 88% efficiency & possess ergonomics control panel, servo motor hardware, special internal design and water grill system
User Convenience : Filling of fuel, ignition and taking the ash proceeds is very easy & convenient due to durable and large feeding cover. With easy to operate Control Panel, the Boiler works with maximum efficiency by automatically adjusting the fan speed and Boiler temperature. Due to movable and rotary water grill, the ash can be emptied into the ash tray by only moving the ash arm
Burning Control System : Once the fan and Boiler thermostat adjustment is done, due to adjustable fan speed control, the air disperses into the Boiler homogenously. Boiler reaches the desired temperature in a very short time due to special internal design. Once the desired Boiler temp. is reached, the servo motor closes the fan valve (100%) & chimney valve (80%) so that the Boiler enters into sleeping mode i.e. the fan stops & Boiler burns by natural draught. As a result of this system, Burning is completely under control and there is considerable saving in terms of fuel and electric consumption
Soot Cleaning : Due to special internal Boiler design, cleaning of soot needs to be done only once or twice a year. Also, pipe type Boilers need to be cleaned once a week. Cleaning cover is on the back side of the Boiler, hence cleaning is easier than other conventional Boilers
High Safety : Boiler water temperature can be adjusted on the control panel. Also, in case of electrical shut down, the servo motor closes the fan and chimney valves, so that boiler temp. does not rise up. Limit thermostat (third safety point) shuts down the electrical system, fan motor & closes the servo motor valves when the Boiler temperature exceeds 90 ºC
Aesthetic Design : The Boiler body is completely insulated and externally painted with an electrostatic paint which contributes to its aesthetic appearance
Environment Friendly : Due to special internal design, burning is complete and under control. Moreover, the harmful waste gases & chimney temperatures at the outlet are reduced to minimum values. Hence, eco-friendly
Long Life and High Quality : These Boilers are manufactured according to acceptable general standards. Use of A1 quality Boiler metal sheet, increases the Boiler lifetime considerably. At the time of Boiler ignition, the heat absorbed by the water grill is converted into beneficial energy. Also, the use of gasket covers, furnishes complete imperviousness
Capacity Range : about 20,000 – 1,20,000 kcal/HR
Available in six models
Applications : Free (independent) houses, villas, workplaces, offices for economical heating and comfort
Capacity Range : 1,70,000 – 3,00,000 kcal/hr .
Available in four models
Capacity Range : 3,50,000 – 10,00,000 kcal/hr .
Available in seven models
The Boiler operation is fully automatic including Fuel loading & Ignition processes
Due to special internal design, efficiency is high & energy consumption is very low as compared to LPG & diesel fuel. Also, burning is complete and under control. Moreover, the harmful waste gases and chimney temperatures at the outlet are reduced to minimum values
Fuel feeding is from the bottom & is continuous
Perfect heat insulation & external electrostatic paint, gives the Boiler an aesthetic appearance
These Boilers are manufactured according to acceptable TSE and International standards. Use of high quality Boiler steel, increases the Boiler lifetime considerably
Capacity Range : 60,000 – 3,50,000 kcal/hr.
Available in 5 models
They can be produced in different models & capacities as per customer requirement
APPLICATION:
Capacity Range : 75,000 – 8,00,000 kcal/hr
Available in 13 models
It can be fired with Natural Gas, LPG, Fuel Oil & Diesel
Due to special internal design ( 4 Pass Heat Exchanger made up of steel ), the transition time of flue gases increases thereby resulting in better heat transfer & greater efficiency ( approx. 92 % ). Moreover, the flue gas temperature at the chimney outlet does not exceed 180 ºC
Control Panel is easy to operate. It enables to control the Boiler water temperature & possesses necessary safety controls for risk-free operation of the Boiler
Large cleaning cover & mounting of Burner on hinged doors, makes the combustion chamber easily accessible for cleaning
Use of refractory concrete material at the Boiler surface, increases the temperature & avoids any heat loss
Perfect heat insulation & external electrostatic paint, gives the Boiler an aesthetic appearance
These Boilers are manufactured according to acceptable TSE & International standards. Use of high quality Boiler steel, increases the Boiler lifetime considerably

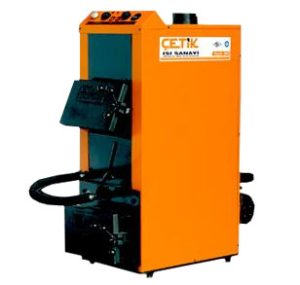

Capacity Range : about 30,000 – 60,000 kcal/hr Solid fuel boiler with stoker
Available in three models
Applications :
Free (independent) houses, villas, workplaces, offices for economical heating and comfort
Fuel feeding is under the combustion chamber, so boiler efficiency is higher & waste materials are less than others
The bunker, once filled by user, need not filled again for approximately 3 days due to its large capacity
Due to large feed cover, combustion chamber is easily accessible and ignition operation is simplified
Combustion chamber is covered by refractory concrete material which increases the temperature around this area
Temperature adjustment , fuel feeding & waiting time can be adjusted by means of Control Panel
When the boiler temperature exceeds 90 ºC, Limit thermostat shuts down the reducer and fan but circulation pump continues to work. Further, when the water temperature falls down below +4 ºC, circulation pump works automatically for blocking the freezing risk
As a result of all these, the Boiler operation is highly efficient & economical
All kinds of solid fuel can be burnt easily
Fuel feeding is under the combustion chamber, so boiler efficiency is higher & waste materials are less than others
The bunker, once filled by user, need not filled again for approximately 3 days due to its large capacity
Due to large feed cover, combustion chamber is easily accessible and ignition operation is simplified
Combustion chamber is covered by refractory concrete material which increases the temperature around this area
Temperature adjustment , fuel feeding & waiting time can be adjusted by means of Control Panel
When the boiler temperature exceeds 90 ºC, Limit thermostat shuts down the reducer & fan but circulation pump continues to work. Further, when the water temperature falls down below +4 ºC, circulation pump works automatically for blocking the freezing risk
As a result of all these, the Boiler operation is highly efficient & economical
Applications : For economical heating and comfort
Capacity Range :90,000 – 3,00,000 kcal/hr . Available in six models
Capacity Range : 3,50,000 – 10,00,000 kcal/hr . Available in seven models
Capacity Range : 60 – 5,000 litres
Design Type : Vertical, Horizontal & Double distance interval
It operates with high efficiency to provide hygienic, uninterrupted, ready to use hot water in a very short time
Inorder to avoid corrosion & oxidization it has been coated with a special epoxy paint
Perfect heat insulation & external electrostatic paint, gives the Boiler an aesthetic appearance
It can be used in a 60 ltr. capacity bath instead of a radiator
These Boilers are manufactured according to acceptable TSE & International standards
