Steam Boilers

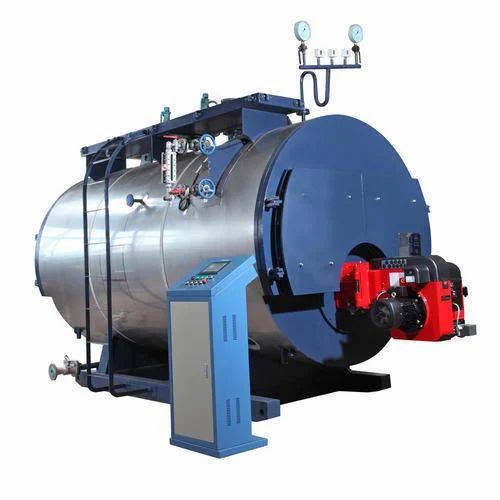

A steam boiler is an apparatus designed to produce steam by heating water. It acts as a heat exchanger, transforming water into steam for a variety of external uses. The boiler typically contains a combustion chamber alongside a water reservoir. Steam boilers are available in different sizes, from compact units to sizable versions capable of undertaking more intensive operations.

Category:

These Steam Boilers are available as once-through type, Shell type, Smoke Tube / Water Tube Boilers

Standard Operating Capacity Range: 600 Kg/hr – 10 Ton/hr (Steam)

Fuel: Light / Medium / Heavy Fuel Oil, Natural Gas or a combination, Coal, Lignite & all Solid Fuels

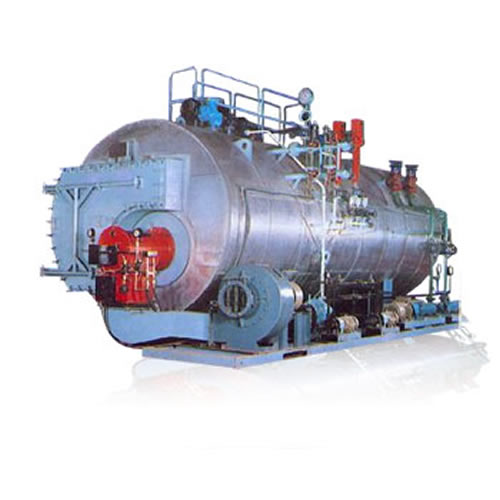

We offer Super Efficient Steam Boilers, both IBR as well SIB, with numerous advantages in the Industrial world.

We have carried out “Energy Conservation & Atomization of Boiler” for our esteemed clients in various fields like –

• Pharmaceutical Industry
• Chemical Industry
• Brick Industry
• Dairy Units etc.

They can be fired with:

• Light Oil / Furnace Oil
• LPG / Natural Gas
• Solid Fuels

Standard Operating Capacity Range : 50 – 850 KG /HR (Steam)

Our Non IBR Boilers are fitted with highly efficient & adjustable high pressure, solid injection type burner working at 150 PSIG & above.

Moreover, they are provided with a special vortex chamber, which gives high combustion efficiency by thoroughly mixing atomized fuel oil & air. The combustion air is preheated by waste heat available from the boiler shell which ensures better combustion & thermal efficiency.



  • Three Pass Double Helical Design : Allows preheated feed water to flow downwards through the finned economiser banks & passes to the radiant steaming zone
  • Full Wet Back Design
  • Large Furnace with Low Position : Enables low heat release rate, rapid water circulation
  • Submerged Combustion Chamber : Results in excellent internal water circulation
  • Separate Tube Sheet : Eliminates stresses, prevents ligament cracks
  • Radiant First Pass
  • Liberal Water Content : Enables the furnace & tubes to be well submerged for maximum protection
  • Large Steam Liberating Surface : Provides dry steam with steady water line
  • Ample Steam Storage Space : Provides uniform steam pressure under any load
  • Rear Tube Sheet : One inside & one outside, eliminates stresses
  • Second & Third Pass Tubes : In convection zone
  • Easy Access
  • Quick Opening Flue Doors
